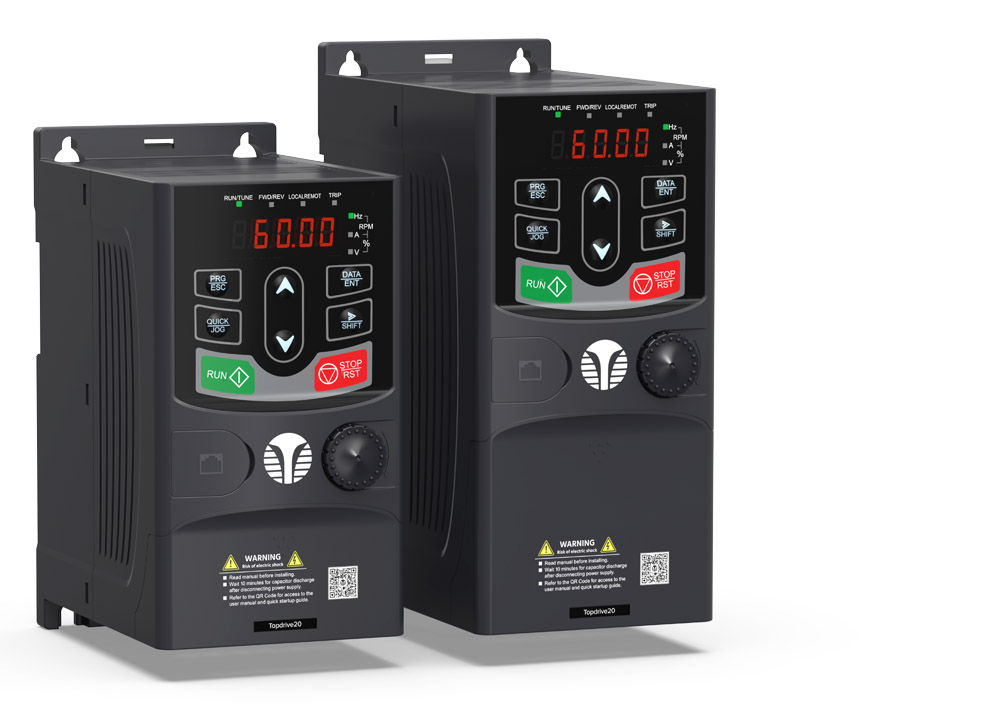

Topdrive20 Series Micro Drives
Topdrive20 series is a micro type general vector inverter, specifically designed as a high performance mini VFD used in the small power market, using the leading international vector control algorithm with excellent product features.
Topdrive20 series is compatibile with wall and rail installation by utilizing a smaller, compact, efficient design. Topdrive20 series is widely used in textile machinery, food machinery, printing/packaging, fans and pumps, ceramic equipment, wood working equipment, conveying equipment, etc.
QUICK SPECS
- POWER RANGE1AC 110-120V: 110V ............ 0.5 - 1.5HP*
1AC 200-240V: 220V ............ 0.5 - 3HP
3AC 200-240V: 220V ............ 0.5 - 1HP
3AC 380-480V: 460V ................ 1 - 3HP
50/60Hz ..... Allowed range: 47 ~ 63Hz
*110V drives available early 2020
- MOUNTING
Wall and DIN Rail
- ENCLOSURE
IP20 or NEMA 1
- POWER RANGE1AC 110-120V: 110V ............ 0.5 - 1.5HP*
RETURN & REFUND POLICY
All returned goods are subject to prior approval and must be accompanied by a return goods authorization (RGA) number. These goods must be returned within 30 days, freight prepaid, in resalable condition and in original packaging. No restocking charge will apply if goods are returned in original condition complete with packaging. If any packaging or parts are missing or damaged, the parts and labour costs required to return the product to original condition will be charged to the Customer. A 30% restocking charge will apply on all gearing products assembled at our facilities. Motors with custom modifications are non-returnable.
SHIPPING INFO
Calculated at Checkout
FEATURES
STANDARD FEATURES
- V/F (SVPWM) and Sensorless Vector (SVC)
- Asynchronous AC induction motors
- Advanced PID functions
- Mini design for smaller installation space and parallel/side-by-side installations
- High performance LED keypad with digital potentiometer. LED external keypad kit optional.
- Overload capability 200% 1s, 180% 10s, 150% 60s
- Multiple installation modes, wall and rail mount
- Embedded braking transistors
- Removable cooling fan for easy maintenance
- Multiple braking modes
- Continuous running in instant power loss
OPERATING PARAMETERS
- IP20 standard, IP21/NEMA 1 kit available
- -10~40°C, de-rate 1% for every additional 1ºC to 50ºC
- Installation up to 1000 MASL (3300 ft.)
MULTI-FUNCTION AND EASY TO USE- Modbus RTU/RS485 built in (standard)
- Simple PLC supporting multiple run modes
- Multiple V/F curve settings
- Multiple V/F curve settings
